Reducing the risk of infection and minimising catheter manipulation, the integrated Safnule IV cannula range incorporates a closed system (with options to add various needle-free connectors) and a unique and patented safe needle-stick prevention feature that allows smooth needle withdrawal with the added benefit of no change to technique and no extra user training.
- Gently tapered catheter tip with Customized Automated Tipping Technology (CATT) for lower penetration forces and optimal trim distance to provide smooth transition from needle to catheter
- Siliconised stainless steel needle with ultra-sharp triple facet bevel for smooth & painless venipuncture (or venepuncture)
- Unique ‘Quick Release’ mechanism ensures easy disengagement of the catheter hub after deployment
- Increased dwell times/duration of use with reduced risk of contamination and Phlebitis
- Ergonomic wings for robust catheter securement and to minimise catheter movement
- Built-in extension minimises catheter manipulation and reduces infection risk
- Dual port option for additional venous access site
- Safety system eliminates risk of accidental needlestick injury
- Venous compression is not required during needle removal to maintain a clean access site
- Reduces costs by increasing functional dwell time are reducing blood exposure during insertion
Dual Port

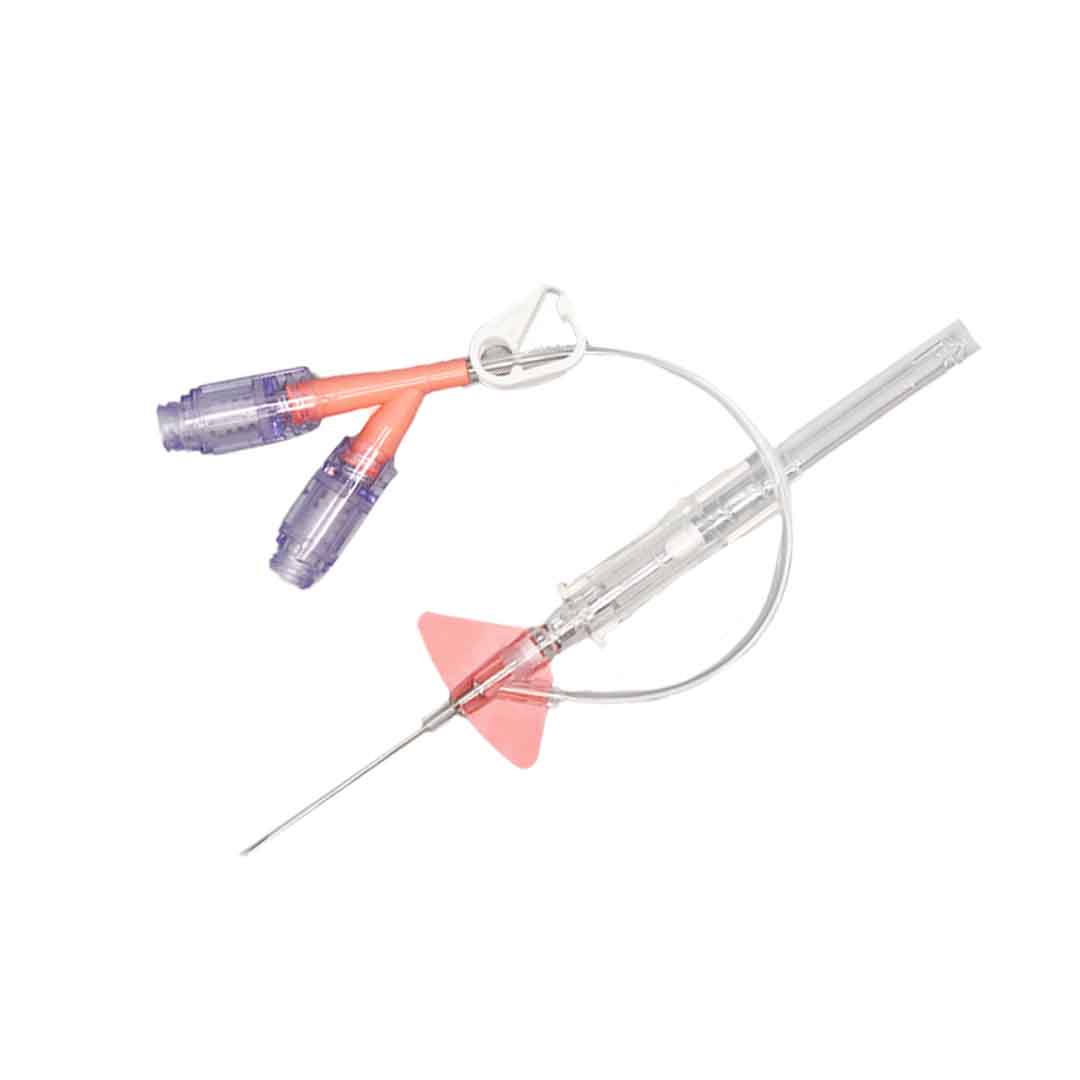

Safnule Closed System Safety IV Catheter – Dual Port
Product Code | NHS Code | Product Description | Length | Diameter | Flow Rate | Qty |
---|---|---|---|---|---|---|
SKU6018992JDa | NHS CodeFSP85370 | Safety Integrated Cannula - 18g - Dual Port without Needle-Free Device | Length32mm | Diameter1.3mm | Flow Rate85ml/min (5.1L/hr) | Qty25 |
SKU6020962JDa | NHS CodeFSP85372 | Safety Integrated Cannula - 20g - Dual Port without Needle-Free Device | Length32mm | Diameter1.1mm | Flow Rate55ml/min (3.3L/hr) | Qty25 |
SKU6022662JDa | NHS CodeFSP85373 | Safety Integrated Cannula - 22g - Dual Port without Needle-Free Device | Length25mm | Diameter0.9mm | Flow Rate33ml/min (1.98L/hr) | Qty25 |
SKU6024662JDa | NHS CodeFSP85355 | Safety Integrated Cannula - 24g - Dual Port without Needle-Free Device | Length19mm | Diameter0.72mm | Flow Rate18ml/min (1.08L/hr) | Qty25 |
All Codes are >325 PSI. All Flow Rates are typical for the gauge & length and can vary depending on fluid (e.g. blood, plasma or crystalloids) |
Safnule Closed System Safety IV Catheter – Dual Port with up to 2 Needle-Free Devices
Product Code | NHS Code | Product Description | Length | Diameter | Flow Rate | Qty |
---|---|---|---|---|---|---|
SKU6019022DJa | NHS CodeFSP85371 | Safety Integrated Cannula - 18g - Dual Port with up to 2 Needle-Free Devices | Length32mm | Diameter1.3mm | Flow Rate85ml/min (5.1L/hr) | Qty25 |
SKU6020992DJa | NHS CodeFSP85344 | Safety Integrated Cannula - 20g - Dual Port with up to 2 Needle-Free Devices | Length32mm | Diameter1.1mm | Flow Rate55ml/min (3.3L/hr) | Qty25 |
SKU6022692DJa | NHS CodeFSP85347 | Safety Integrated Cannula - 22g - Dual Port with up to 2 Needle-Free Devices | Length25mm | Diameter0.9mm | Flow Rate33ml/min (1.98L/hr) | Qty25 |
Product Code6024692DJa | NHS CodeFSP85374 | Safety Integrated Cannula - 24g - Dual Port with up to 2 Needle-Free Devices | Length19mm | Diameter0.72mm | Flow Rate18ml/min (1.08L/hr) | Qty25 |
All Codes are >325 PSI. All Flow Rates are typical for the gauge & length and can vary depending on fluid (e.g. blood, plasma or crystalloids) |
Single Port

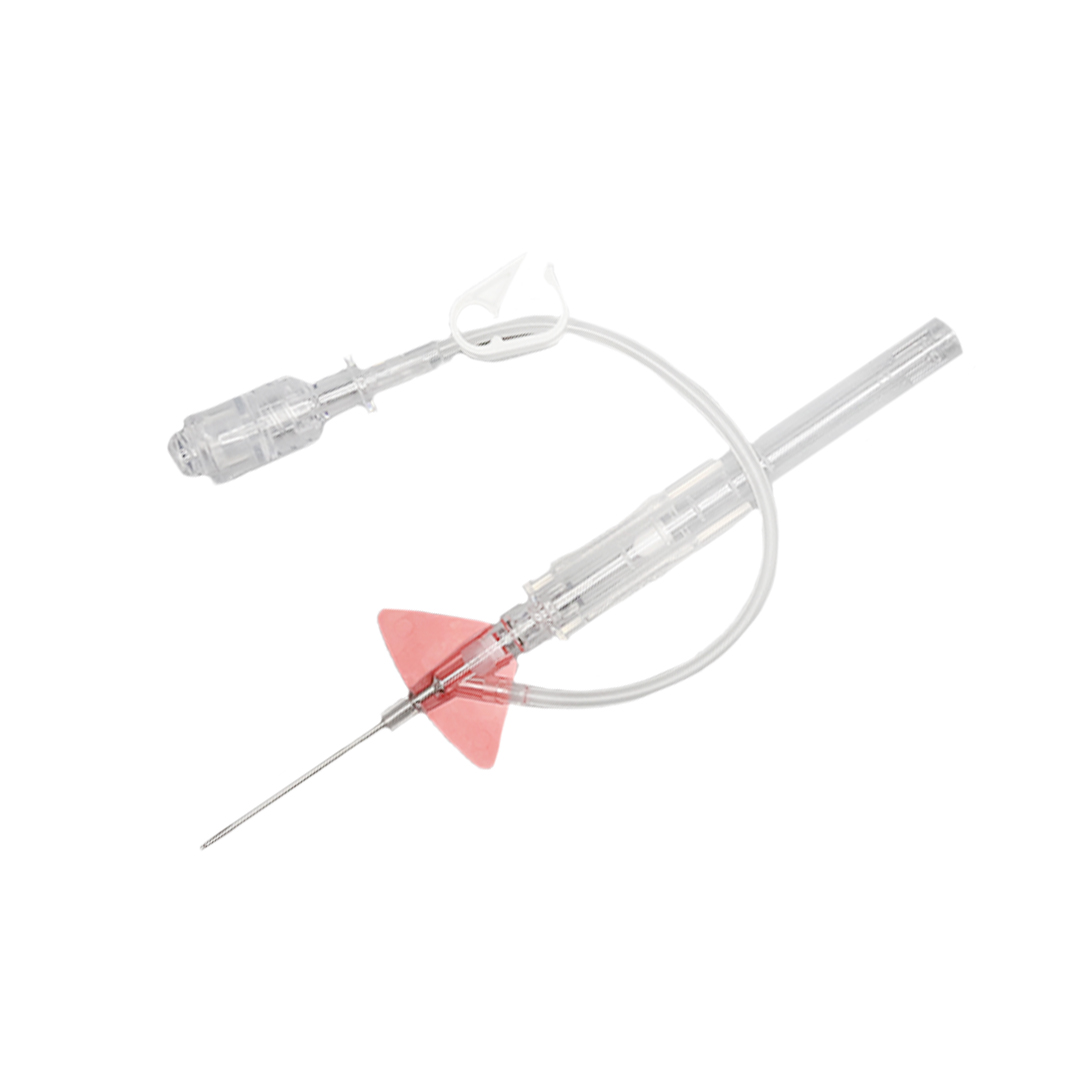

Safnule Closed System Safety IV Catheter – Single Port with Needle-Free Device
Product Code | NHS Code | Product Description | Length | Diameter | Flow Rate | Qty |
---|---|---|---|---|---|---|
SKU59190020JD | NHS CodeFSP85358 | Safety Integrated Cannula - 18g - Single Port with Needle-Free Device | Length32mm | Diameter1.3mm | Flow Rate85ml/min (5.1L/hr) | Qty25 |
SKU59209420JD | NHS CodeFSP85346 | Safety Integrated Cannula - 20g - Single Port with Needle-Free Device | Length32/25mm | Diameter1.1mm | Flow Rate55ml/min (3.3L/hr) | Qty25 |
SKU59226720JD | NHS CodeFSP85340 | Safety Integrated Cannula - 22g - Single Port with Needle-Free Device | Length25mm | Diameter0.9mm | Flow Rate33ml/min (1.98L/hr) | Qty25 |
SKU59246720JD | NHS CodeFSP85369 | Safety Integrated Cannula - 24g - Single Port with Needle-Free device | Length19mm | Diameter0.72mm | Flow Rate18ml/min (1.08L/hr) | Qty25 |
All Codes are >325 PSI. All Flow Rates are typical for the gauge & length and can vary depending on fluid (e.g. blood, plasma or crystalloids) |
Safnule Closed System IV Catheter with Blood Control Technology – Single Port
Product Code | NHS Code | Product Description | Length | Diameter | Flow Rate | Qty |
---|---|---|---|---|---|---|
SKU59189920JD-1 | NHS CodeFSP85359 | Safety Integrated Cannula - 18g - Single Port with Blood Control Technology | Length32mm | Diameter1.3mm | Flow Rate85ml/min (5.1L/hr) | Qty25 |
SKU59209620JD-1 | NHS CodeFSP85342 | Safety Integrated Cannula - 20g - Single Port with Blood Control Technology | Length32mm | Diameter1.1mm | Flow Rate55ml/min (3.3L/hr) | Qty25 |
SKU59226620JD-1 | NHS CodeFSP85357 | Safety Integrated Cannula - 22g - Single Port with Blood Control Technology | Length25mm | Diameter0.9mm | Flow Rate33ml/min (1.98L/hr) | Qty25 |
SKU59246620JD-1 | NHS CodeFSP85343 | Safety Integrated Cannula - 24g - Single Port with Blood Control Technology | Length19mm | Diameter0.72mm | Flow Rate18ml/min (1.08L/hr) | Qty25 |
All Codes are >325 PSI. All Flow Rates are typical for the gauge & length and can vary depending on fluid (e.g. blood, plasma or crystalloids) |

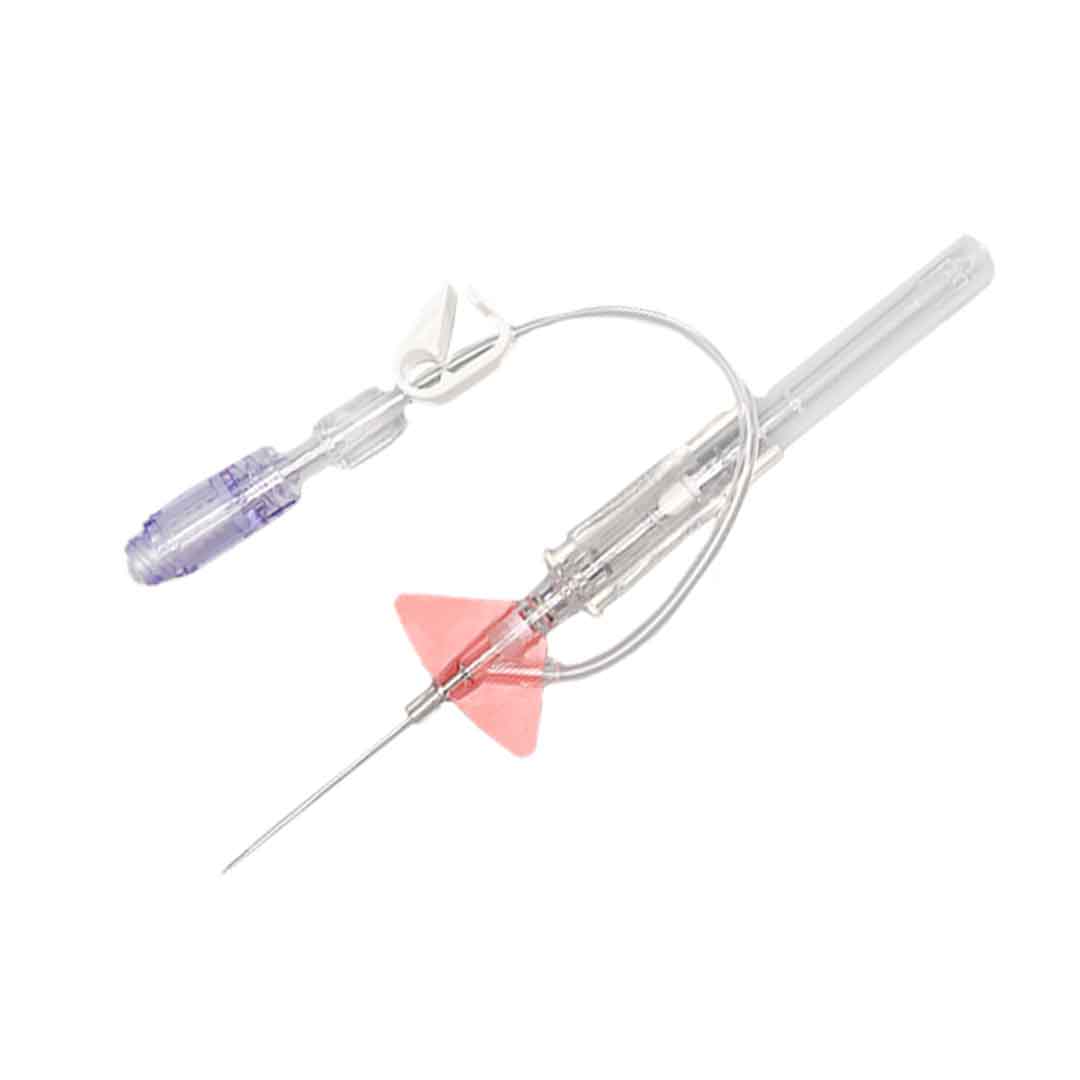

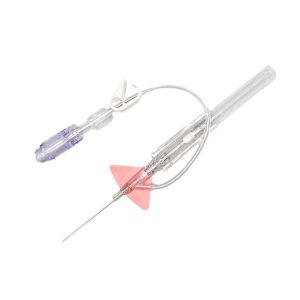

Safnule Closed System IV Catheter – Single Port
PRODUCT CODE | NHS CODE | PRODUCT DESCRIPTION | LENGTH | DIAMETER | FLOW RATE | QTY |
---|---|---|---|---|---|---|
SKU59189920JD | NHSSC CodeFSP85360 | Safety Integrated Cannula 18g - Single Port | Length32mm | Diameter1.3mm | Flow Rate85ml/min (5.1L/hr) | Qty25 |
SKU59209620JD | NHSSC CodeFSP85345 | Safety Integrated Cannula 20g - Single Port | Length32mm | Diameter1.1mm | Flow Rate55ml/min (3.3L/hr) | Qty25 |
SKU59226620JD | NHSSC CodeFSP85341 | Safety Integrated Cannula 22g - Single Port | Length25mm | Diameter0.9mm | Flow Rate33ml/min (1.98L/hr) | Qty25 |
SKU59246620JD | NHSSC CodeFSP85336 | Safety Integrated Cannula 24g - Single Port | Length19mm | Dia.0.7mm | Flow Rate18ml/min (1.08L/hr) | Qty25 |
All Codes are >325 PSI. All Flow Rates are typical for the gauge & length and can vary depending on fluid (e.g. blood, plasma or crystalloids) |
